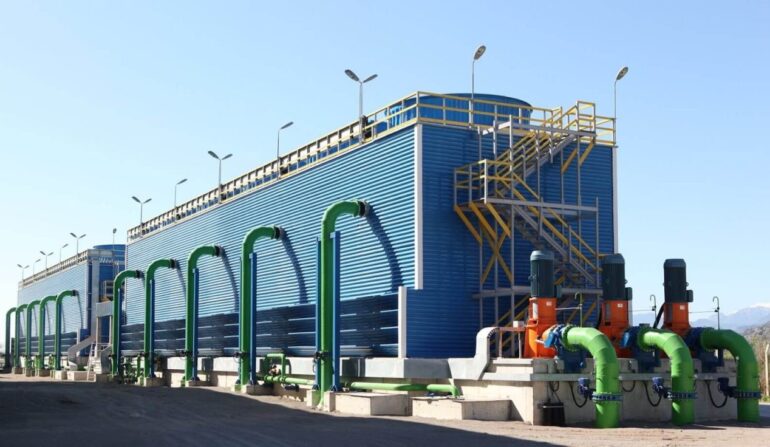

📊 Maximizing Heat Rejection: The Cooling Tower Efficiency Calculation
In industrial operations, cooling tower efficiency isn’t just a performance metric—it’s a critical factor in energy consumption and process effectiveness. High efficiency ensures that heat is rejected to the atmosphere at the lowest possible cost, leading to significant savings and optimal equipment function. Calculating this efficiency involves understanding three fundamental temperature parameters: Range, Approach, and the limiting factor of the Wet Bulb Temperature.
Key Thermal Parameters
Before calculating efficiency, you must determine these three critical thermal measurements, typically measured in degrees Celsius $\left(^{\circ}\text{C}\right)$ or Fahrenheit $\left(^{\circ}\text{F}\right)$:
- Cooling Range ($R$): This is the actual cooling achieved by the tower.
- $R = \text{Hot Water Temperature (Inlet)} – \text{Cold Water Temperature (Outlet)}$
- A wider range generally indicates a greater heat load being removed by the tower.
- Cooling Approach ($A$): This is the difference between the coldest water the tower achieves and the theoretical limit for evaporative cooling.
- $A = \text{Cold Water Temperature (Outlet)} – \text{Ambient Wet Bulb Temperature (WBT)}$
- Approach is the best indicator of a tower’s thermal performance. A smaller approach (closer to $5^{\circ}\text{C}$ or $9^{\circ}\text{F}$) signifies higher efficiency, though achieving zero is physically impossible.
- Wet Bulb Temperature ($\text{WBT}$): Measured with a psychrometer, this represents the absolute theoretical minimum temperature to which water can be cooled by evaporation under current atmospheric conditions (humidity and air temperature).
The Efficiency Formula
Cooling tower efficiency is calculated as the ratio of the actual cooling achieved (Range) to the maximum possible cooling (Range + Approach):
$$\text{Efficiency} \,(\%) = \frac{\text{Range}}{\text{Range} + \text{Approach}} \times 100$$
$$\text{Efficiency} \,(\%) = \frac{\text{Hot Water Temp} – \text{Cold Water Temp}}{\text{Hot Water Temp} – \text{Wet Bulb Temp}} \times 100$$
A well-designed and maintained cooling tower typically operates with an efficiency between 70% and 75%. Monitoring this calculation consistently is vital, as a drop in the percentage often signals issues like fouling, scaling, or improper fan/air flow.
📉 Factors Affecting Performance
Efficiency is heavily dependent on factors beyond the formula itself:
- Climatic Conditions: A higher $\text{WBT}$ (more humid air) directly reduces the potential for cooling, lowering the efficiency percentage.
- Fill Media Condition: Scale, mineral deposits, or biological growth on the fill material impede heat transfer, significantly reducing the Range achieved.
- Airflow: Proper fan speed and lack of obstructions are essential for the required air-to-water contact.
- Water Distribution: Clogged nozzles or uneven flow across the fill reduce the effective surface area, hurting the cooling process.
Regular water treatment and maintenance are essential for keeping the Range high and the Approach low, ensuring your cooling tower operates at its designed capacity and maximizes energy savings.
This video provides a straightforward explanation of the terms involved in calculating cooling tower efficiency: Cooling Tower Efficiency Calculation.
