Introduction

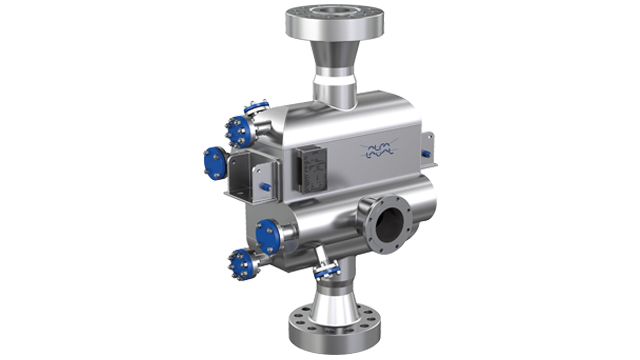

Printed Circuit Heat Exchangers (PCHEs) are an innovative class of heat exchangers designed to address the need for compact, high-performance thermal management systems. Unlike traditional heat exchangers, PCHEs are made by etching microchannels into metal plates, which are then diffusion-bonded together to form a dense, leak-proof assembly. This unique manufacturing process allows for the creation of highly efficient heat exchangers that are capable of withstanding extreme temperatures and pressures while minimizing the space required for installation. These heat exchangers are increasingly being adopted in critical industries such as power generation, oil and gas, hydrogen production, chemical processing, and renewable energy systems. Their ability to handle complex fluids and maximize heat transfer efficiency in a compact form makes them an attractive solution for modern energy and industrial applications. As global industries focus on improving energy efficiency and sustainability, PCHEs are emerging as an essential technology for achieving these goals.
Key Features of PCHEs
- Compact Design
PCHEs have a highly compact structure, which reduces their physical footprint significantly compared to traditional shell-and-tube or plate heat exchangers. This feature is particularly beneficial in industries like offshore oil platforms, where space is a premium. The compact design is achieved by stacking multiple etched plates, forming a dense assembly of flow channels while maintaining exceptional heat transfer performance. - High Efficiency
PCHEs leverage microchannels etched into metal plates to maximize the surface area available for heat exchange. These channels promote turbulent flow at lower velocities, improving heat transfer efficiency while minimizing pressure losses. The efficiency is also enhanced by the counterflow or crossflow configurations, which ensure optimal temperature gradients between the fluids. - Robust Construction
Manufactured from durable materials such as stainless steel, nickel alloys, or titanium, PCHEs can handle extreme conditions, including pressures exceeding 100 MPa and temperatures above 800°C. The diffusion bonding process used in their fabrication fuses the etched plates into a single solid block, eliminating weak points and creating a leak-proof structure. This robustness makes them suitable for demanding applications like supercritical CO₂ power cycles and cryogenic processes. - Versatility
PCHEs can accommodate a variety of fluids, including gases, liquids, and phase-changing substances such as refrigerants. They are adaptable to processes involving condensation, evaporation, or simple heat transfer. Their ability to handle diverse thermal and pressure requirements makes them versatile across multiple industries. - Durability
The diffusion-bonded structure ensures exceptional durability. Unlike traditional exchangers with gaskets or mechanical seals, PCHEs have no moving parts or joints prone to wear and tear. This not only reduces maintenance costs but also enhances reliability in critical operations where downtime can be expensive.
Applications of PCHEs
- Power Generation
In power generation, PCHEs are critical components of advanced systems like supercritical CO₂ Brayton cycles, where compactness and high efficiency are essential. They are also employed in nuclear reactors for heat recovery and in combined heat and power (CHP) systems to improve overall energy utilization. - Oil and Gas
PCHEs are widely used in natural gas processing, particularly in liquefied natural gas (LNG) production. Their ability to handle cryogenic temperatures and high pressures makes them ideal for LNG liquefaction and vaporization processes. Additionally, their compact design is advantageous for offshore oil platforms and floating LNG facilities. - Chemical Processing
In the chemical industry, PCHEs are utilized for processes requiring precise temperature control, such as catalytic reactions, distillation, and heat recovery. Their ability to handle corrosive fluids and high pressures makes them indispensable for these operations. - Hydrogen Production
With the growing emphasis on hydrogen as a clean energy source, PCHEs are becoming integral in hydrogen liquefaction and storage systems. Their efficiency and ability to operate at cryogenic temperatures make them ideal for this application. - Renewable Energy
PCHEs are used in concentrated solar power (CSP) plants to transfer heat from molten salt to power generation systems. They are also applied in geothermal plants to recover and utilize heat from geothermal reservoirs, improving energy efficiency and output.
Future Trends and Innovations on Printed Circuit Heat Exchangers
- Advanced Materials
Research into advanced alloys and composite materials is ongoing to improve PCHE performance in corrosive and high-temperature environments. For example, nickel-based alloys and titanium are being explored for applications in aggressive chemical processes and marine environments. - Additive Manufacturing
Additive manufacturing, or 3D printing, offers the potential to create even more intricate and optimized channel designs in PCHEs. This technology can reduce production time and costs while enabling the development of customized heat exchangers tailored to specific applications. - Hydrogen Economy
As the world transitions to cleaner energy sources, PCHEs will play a crucial role in hydrogen infrastructure. They are expected to be integral to hydrogen liquefaction plants, fuel cells, and storage systems, where their compactness, efficiency, and robustness will be indispensable. - Enhanced Microchannel Designs
Innovations in microchannel geometry are focused on reducing pressure drops while enhancing heat transfer. Techniques like incorporating turbulence-promoting features, optimizing channel arrangements, and using computational fluid dynamics (CFD) simulations are being employed to achieve these advancements. - Integration with IoT
The incorporation of IoT (Internet of Things) technology in PCHEs will enable real-time monitoring of performance parameters like pressure, temperature, and flow rates. This will facilitate predictive maintenance, improving reliability and reducing operational costs by preventing unplanned downtime.
Conclusion
In conclusion, Printed Circuit Heat Exchangers are at the forefront of thermal management technology due to their compact size, high efficiency, and versatility. The ability to handle extreme pressures, high temperatures, and a variety of fluid types while maintaining minimal space requirements makes PCHEs invaluable in applications where space is limited, and operational efficiency is paramount. From their role in advanced power cycles and LNG production to their adoption in renewable energy systems, PCHEs are essential in driving innovation and sustainability across multiple sectors. As advancements continue in materials, design, and manufacturing techniques, PCHEs will play an even more significant role in shaping the future of energy-efficient and environmentally friendly technologies. With their robust performance and capacity to meet the demands of the evolving industrial landscape, PCHEs will remain a key technology for years to come, helping industries transition toward cleaner, more efficient energy solutions.
