Introduction
Additive-manufactured heat exchangers represent a paradigm shift in the field of thermal management, offering groundbreaking solutions to industries that require highly efficient and compact cooling systems. Utilizing advanced 3D printing techniques, these exchangers are capable of achieving intricate geometries that optimize heat transfer, improve fluid flow, and reduce size and weight. This level of precision and flexibility is not achievable with traditional manufacturing methods. These exchangers are particularly beneficial for industries such as aerospace, automotive, electronics, and healthcare, where space constraints and performance demands are at their peak. However, despite the immense potential of additive manufacturing in this domain, there are challenges, including high production costs, material limitations, and the need for rigorous regulatory certification. As the technology matures and continues to evolve, additive-manufactured heat exchangers are set to redefine the future of cooling systems and open new avenues for innovation and efficiency.
Advantages of Additive-Manufactured Exchangers
- Complex Geometries

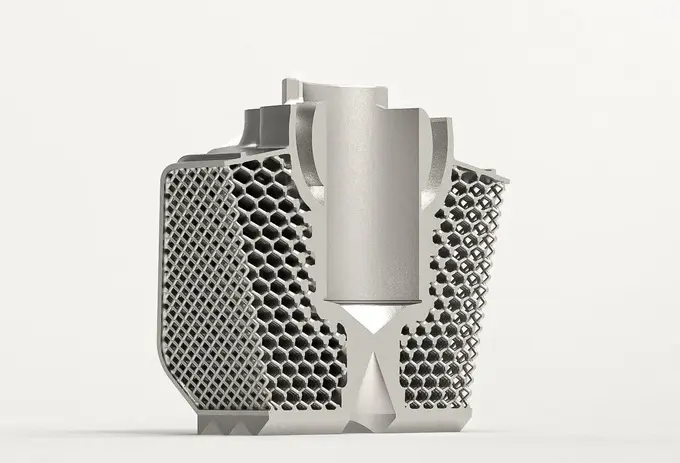

- Additive manufacturing enables the creation of intricate geometries that were impossible with traditional manufacturing. Features like microchannels, lattice structures, and unique flow pathways significantly enhance heat transfer efficiency. For example, microchannels can improve the surface area for heat exchange, leading to better thermal performance in a smaller footprint.
- Lightweight Design
- The ability to use topology optimization techniques results in exchangers that are both lightweight and strong. This is particularly critical in applications like aerospace and automotive industries, where weight reduction directly improves fuel efficiency and performance.
- Enhanced Heat Transfer Efficiency
- The precise control over material deposition ensures that exchangers can be optimized for higher heat transfer coefficients and lower pressure drops. This improves energy efficiency and reduces operational costs, making the technology highly attractive for industries prioritizing sustainability.
- Customization and Scalability
- Additive manufacturing offers unparalleled customization, allowing exchangers to be tailored to specific requirements such as temperature ranges, fluid types, and spatial constraints. This flexibility is particularly beneficial in industries with highly specialized needs, such as medical devices and high-performance computing.
Elaborated Applications of Additive-Manufactured Exchangers
- Aerospace and Defense
- Lightweight and high-efficiency exchangers are used in jet engines, spacecraft, and satellites. These exchangers can withstand extreme temperatures and pressures, making them ideal for critical thermal management in space exploration and military applications.
- Automotive Industry
- Additive-manufactured exchangers are increasingly used in electric vehicles (EVs) for battery cooling, thermal management of inverters, and HVAC systems. Their compact design ensures optimal space utilization in EV architectures.
- Electronics Cooling
- High-performance computing systems and data centers require efficient cooling to prevent overheating. Additive-manufactured exchangers provide compact solutions with enhanced thermal performance, ensuring consistent system reliability.
- Healthcare and Medical Devices
- Medical equipment such as MRI machines, ventilators, and laser systems benefit from compact and precise heat exchangers. Customizable designs allow these exchangers to fit seamlessly into medical devices with stringent thermal requirements.
- Energy and Power Generation
- In renewable energy systems like solar and wind power, heat exchangers manage thermal loads efficiently. Additive manufacturing enables designs that optimize performance under varying environmental conditions.
Elaborated Challenges of Additive-Manufactured Exchangers
- High Initial Costs
- The cost of additive manufacturing equipment and materials is significantly higher than traditional manufacturing methods. While costs are expected to decline over time, this remains a barrier for small-scale manufacturers.
- Material Limitations
- Not all materials used in traditional heat exchangers are suitable for additive manufacturing. For example, certain high-performance alloys may require specialized equipment or techniques to print effectively, limiting material choices.
- Size and Scale Constraints
- The build size of additive manufacturing equipment restricts the production of large exchangers. While modular designs can address this limitation, assembling multiple smaller components increases manufacturing complexity and costs.
- Surface Finish and Post-Processing
- Additive manufacturing often results in rough surface finishes, which can affect thermal performance and fluid dynamics. Post-processing techniques, such as polishing or machining, are required to meet the desired surface quality, adding time and cost.
- Regulatory and Certification Hurdles
- Additive-manufactured components are still relatively new, and industry standards and certifications for their use are not fully established. This can delay adoption in highly regulated industries like aerospace, healthcare, and nuclear energy.
Future and Innovations in Additive-Manufactured Exchangers
- Advanced Materials Development
- Future Outlook: The development of specialized materials for additive manufacturing, such as high-temperature alloys, composite materials, and advanced polymers, will expand the application scope of additive-manufactured exchangers. These materials will enable heat exchangers to operate in extreme conditions, such as ultra-high temperatures in aerospace propulsion systems or highly corrosive environments in chemical processing.
- Integration with Smart Technologies
- Future Outlook: Additive-manufactured exchangers will increasingly integrate with smart sensors and IoT-enabled systems to offer real-time monitoring and predictive maintenance. These features will reduce downtime, enhance energy efficiency, and extend the lifespan of the exchangers.
- Mass Customization
- Future Outlook: Additive manufacturing will make mass customization a practical reality, allowing industries to design exchangers tailored to specific needs at scale. Each exchanger can be optimized for unique flow rates, thermal loads, or spatial constraints without additional tooling costs.
- Multi-Functional Heat Exchangers
- Future Outlook: Future designs will combine multiple functionalities into a single unit, such as integrating cooling, structural support, and acoustic insulation. This will make exchangers even more compact and efficient, reducing the overall complexity of systems.
Conclusion
Additive-manufactured heat exchangers are an exciting breakthrough that brings a new level of efficiency, customization, and complexity to thermal management. They hold the potential to revolutionize industries by enabling highly specialized designs that enhance performance while reducing energy consumption, weight, and material waste. These exchangers can be tailored to meet the specific needs of various applications, from cooling sensitive electronics to optimizing heat transfer in aerospace components. While challenges like cost, scalability, and material limitations still persist, ongoing advancements in additive manufacturing processes and materials are rapidly addressing these obstacles. As industries continue to prioritize sustainability, innovation, and efficiency, additive-manufactured heat exchangers will increasingly play a critical role in meeting these objectives, shaping the future of thermal management solutions. With their ability to provide superior performance and design flexibility, they are poised to become a cornerstone of next-generation cooling technologies.
